Specification:

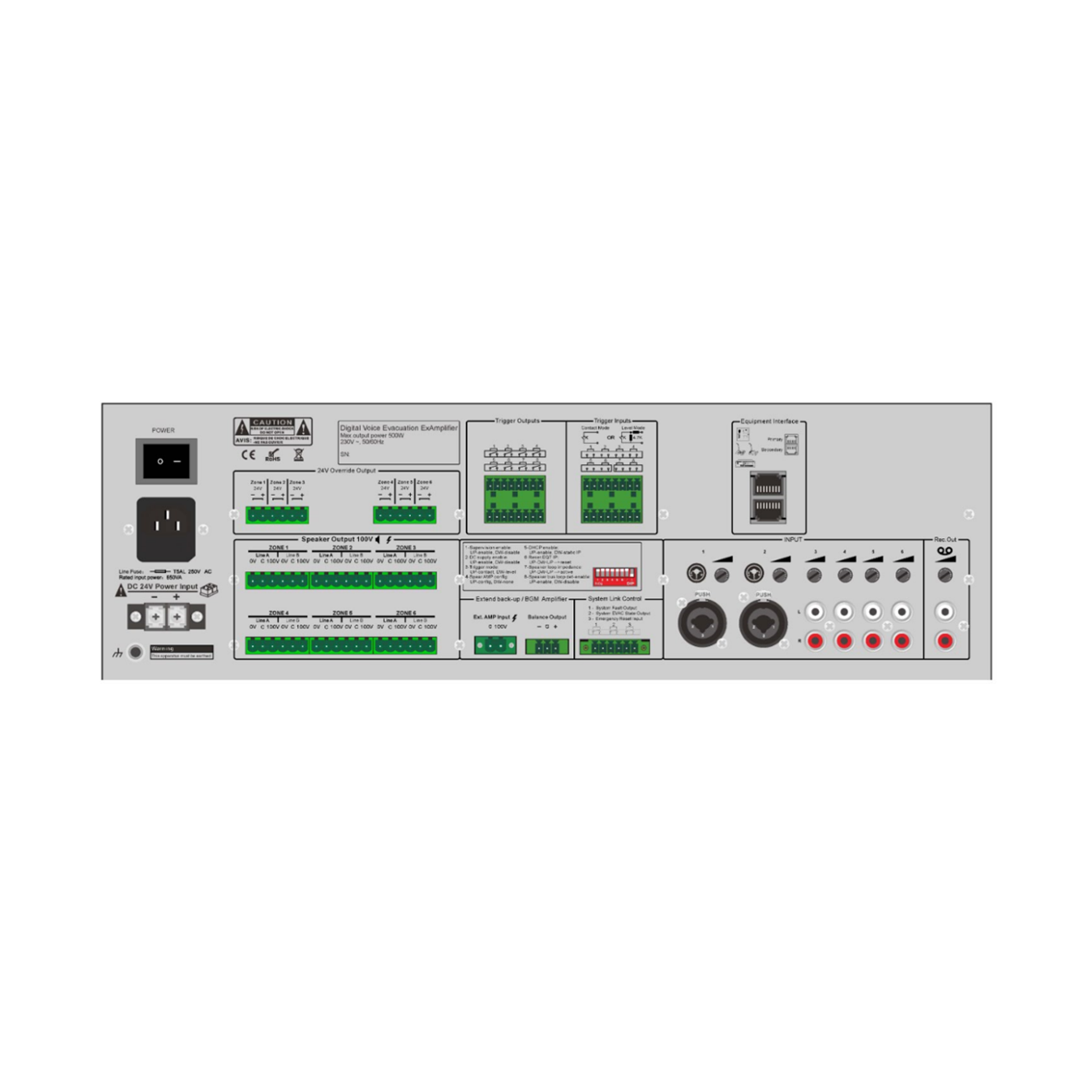

Model : EVAC-500RT
Description :6 Zone Voice Evacuation Router
Rated Power Output: 500W
Fireman Microphone : 5Mv, 600Ω
Frequency Response : 80Hz~20kHz
THD :＜1% at RMS,1KHz
S/N Ratio : >70dB
Speaker Output : 100V AB 6 zone speaker outputs
REC Output : 200mV
Control Input & Output :
8 control inputs: Max 3.3V (voltage mode) or 0V closed contact;
8 control outputs: 0V closed contact;
1 fault, 1 reset & 1 EVAC relay outs
Event Record : HEX format, Hard Flash memory, events up to 1000 records, 10 years valid
Operation Envr : Operation Temp: +5°C ~ +40°C; Store Temp: -20°C ~ +70°C; Operation Humidity: <95%
Power Consumption : 650W
Power Supply : AC230V or 115V & 24V DC inputs, 50-60HZ
AC Fuse: 250V/6.3A, slow type and restorable fuse
Dimension : 484×132×449 mm
Weight : 23kg
