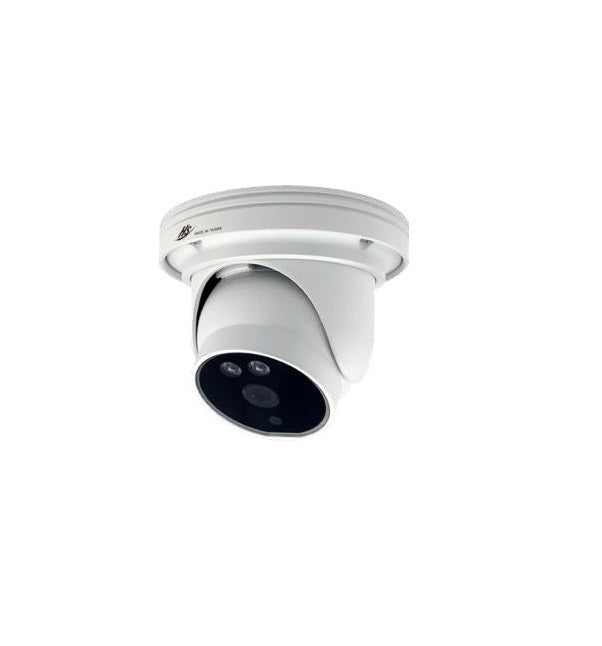

Hi Sharp,HS-4IN1-D105DJ, lens: 2.8 mm, Security Camera – Dome ,White
Hi Sharp,HS-4IN1-D105DJ, lens: 2.8 mm, Security Camera – Dome ,White
Couldn't load pickup availability
Product Features :
■ High video quality on HD 1080P
■ HD video transmission without video quality loss & delay
■ Long transmission distance
■ The same connection structure as original analogue system without cable (Coax / UTP) changing
■ 2DNR
■ Support CoC (UTC) to operate OSD menu
■ Transmits audio over the coaxial cable (TVI mode
Specifications:
|
Model |
HS-4IN1-D105DJ |
|
Pick Up device |
1/2.9" CMOS : 2.0 Mega |
|
Solution |
TP3813 + JX-F23 |
|
Resolution |
1920(H) x 1080(V) |
|
Video Output |
AHD / CVBS / TVI / CVI |
|
S/N Ratio |
More than 60 dB |
|
Min. Illumination |
0.01Lux |
|
Lens |
Board 2.8 mm |
|
Camera Control |
CoC |
|
Electronic Shutter |
Auto 1/60 (1/50) ~ 1/100,000 sec |
|
IR Distance |
20M |
|
WDR |
Yes |
|
DNR |
2DNR |
|
Maximum FPS |
30fps(NTSC) / 25fps(PAL) |
|
Audio line in |
Built-in MIC × 1 |
|
Audio line out |
Support audio over coaxial (TVI mode) not support 3.5mm AUX line out |
|
Power Source |
DC12V ± 10% / 1A |
|
Operating Temperature |
-10° C ~ 50° C (14° F ~ 122° F) |
|
Dimension (mm) |
Φ119.7 × 86.4 |
|
Ingress Protection |
IP68 |
