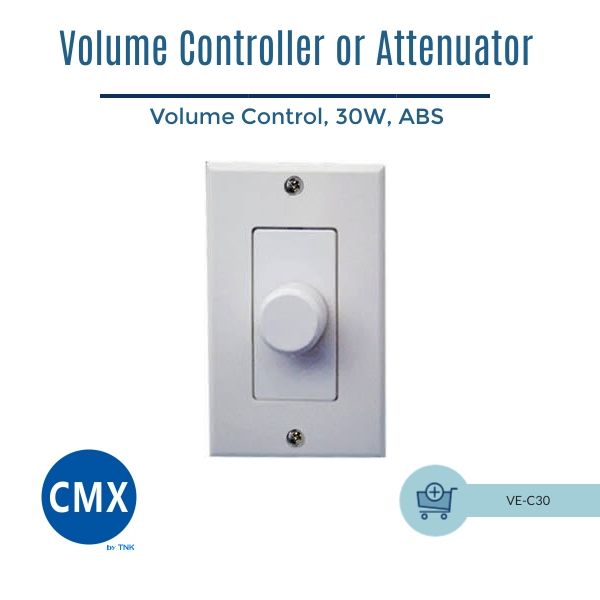

CMX VE-C30 (100V Volume Controller)

CMX VE-C30 (100V Volume Controller)

LE 255.00 EGP
LE 255.00 EGP
Sale Sold out
Tax included. Shipping calculated at checkout.

Features:

  • PA (Public address) system use volume controller.
  • Background music system use attenuator.
  • Power control of 6W, 30W, 60W and 120W.
  • Integrate with transformer technology of compact size.
  • The volume controller is used to adjust the loudspeaker output in the room.
  • The volume controller is used to keep same output level for one same speaker line, because the end the speaker line signal loss is rather big, so its outputs is less, thus volume controller is added to the front of the line to lower the speaker output so as to keep the similar ambient output level for the all of the speaker in the same line.
  • High level white UV-protected ABS material to integrate together with the white wall and architecture design.
  • Built-in transformer to control the PA 100V line loudspeakers.
  • With 10 levels of volume attenuator and one position of off.
  • Surface wall mount or in-wall mounting box shall be purchased separated.
  • With 24V relay is optional.

Specification

Model
VE-C30
Description
100V Volume Controller
Rated Output
30W
Line Input
100V or 70V
Volume Step
10 steps plus off
Attenuation Per Step
3dB
Total Attenuation
33dB
Material
UV-protected ABS in white
Mounting Way
Surface mount or in-wall mount
Dimension
115(W)×70(D)×54(H)mm
