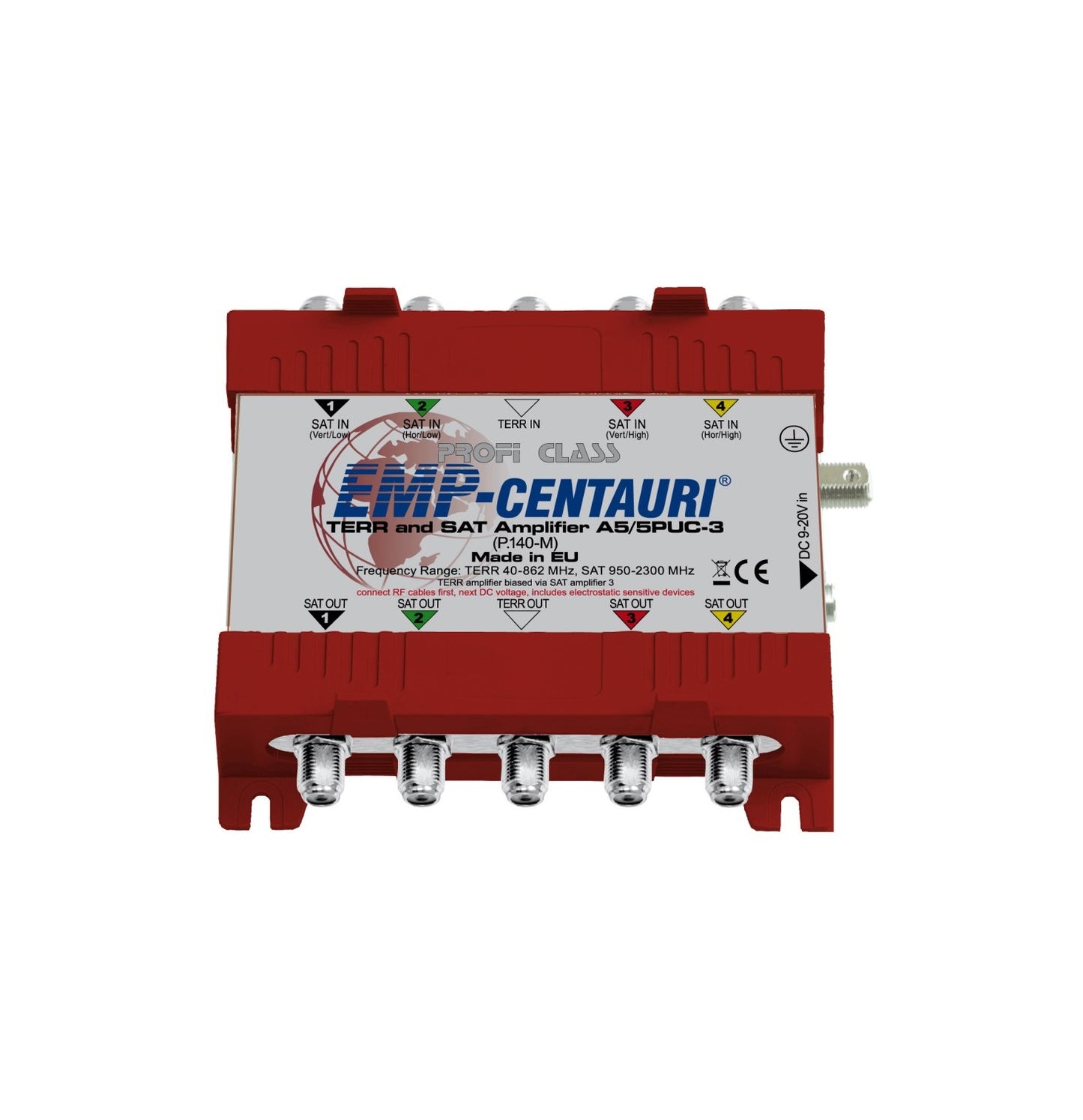

EMP Amplifier A5/5PUC-3 (P.140-M)
EMP Amplifier A5/5PUC-3 (P.140-M)
Couldn't load pickup availability
Description :
5in/5out cascadable amplifier high output power for distribution of terrestrial & satellite signals from 1 satellite position (4 polarities).
The amplifier’s input-output satellite paths are DC pass-through and supply the appropriate internal amplifiers (a supply voltage of 12 to 18 V DC comes from the satellite input of a multiswitch or power switch connected to the amplifier outputs). If no DC voltage is present at the satellite input or output of the amplifier, the amplifier can be powered from an external 12-20V DC power supply (recommended PA12 power supply) via the power connector. This DC voltage appears at each satellite input and output of the amplifier and can be used to power another unit in cascade or for an LNB.
| Parameter | Condition | Value |
| Frequency range |
Sat. Terr. |
950-2300 MHz 40-862 MHz, |
| Insertion gain |
Sat. Terr. |
13 dB avg 13 dB avg |
| Isolation between trunks | 25 dB avg | |
| Maximum input level* |
Sat. Terr. |
100 dBμV avg 95 dBμV avg, |
| Power consumption | Via coaxial cables or DC input | 5 x 70 mA (12 V) |
| Dimensions (w,d,h) | 12.7 x 10.4 x 4.1 cm | |
| Temperature range | -30 ~ +70 °C | |
| Weight | 0.270 kg | |
| Made in | European Union. |
